The Vorotek O Scope is the successor to the original Voroscope and industry-leading LumiView head-worn microscope. It is hands-free and portable, providing brilliant LED illumination. Binocular vision allows both eyes to work together naturally, providing accurate depth perception in the ear, nose and throat.


Understanding Converged Optics


THE CHALLENGE:
Viewing and working safely in the ear, nose or throat without an expensive, wall-mounted, binocular microscope. Human vision has limitations. Just as our ears are spaced apart to allow accurate, binaural audio location, our two eyes are spaced apart and work together with our brains to provide three-dimensional depth perception of the visual world around us. This system works very well in most situations, except when it comes to viewing narrow spaces close-up, like an ear canal. This can present a challenge when trying to perform sensitive tasks like cerumen removal. This problem can be solved by using a binocular microscope to narrow the point of convergence, as if our eyes were closer together.



THE SOLUTION:
Vorotek O Scope head-worn binocular microscope that allows for maximum visualization of the ear canal. The O Scope uses mirrors and precise angles to bring your pupils closer together, in order to view inside narrow spaces with both eyes — just like an expensive, wall-mounted binocular microscope.

Learn more about converged optics and achieving maximum visualization of the ear canal with this free pdf guide >


Vorotek O Scope Head-worn Binocular Microscope


FOR ENT SURGEONS

IDEAL FOR:
Ventilation Tube Insertion
Foreign Body Removal
Cerumen Management
Use with Children
Hospital and Clinic Use

PDF WITH FULL PRODUCT INFORMATION

FOR AUDIOLOGISTS

IDEAL FOR:
Cerumen Removal
Deep Canal Fittings
Dome Removal
Ear Molds
Use with Children

PDF WITH FULL PRODUCT INFORMATION

USING THE RIGHT TOOLS FOR THE JOB

Binocular microscopes use mirrors and angles to effectively bring our eyes closer together, letting us see inside narrow spaces with accurate, stereoscopic (three-dimensional) vision. A binocular microscope is the best way to see and work inside narrow, sensitive areas like the ear canal. Until now, binocular microscopes were large and costly. The Vorotek O Scope head-worn binocular microscope now solves this problem at a fraction of the cost!


STATE-OF-THE ART VISUALIZATION

Converged Binocular Optics: Allows both eyes to work together naturally for accurate and immersive view.

LED Illumination: High-power, 55,000 LUX illumination provides pure white, shadow-free illumination in the field of view. Works with binoculars in the up or down position.

Fully Integrated, Ergonomic Design: Head-worn, lightweight, and hands-free, the fully integrated design ensures that the converged binoculars and illumination stay precisely aligned.

Convenient Flip-up Action: Binoculars can be rotated in and out of use, allowing user to comfortably talk to patients without ever having to remove the O Scope.

Portable & AC Power Supply: Lithium-ion battery pack provides 10 hours of use and fully charges
in 4 hours. Charger/AC Power Supply can be used to provide continuous use.



What about conventional loupes?

Loupes are great at magnifying objects at arm’s length, but do not converge our vision enough for a stereoscopic view inside a narrow ear canal. If you try to use loupes to view inside an ear canal, you are only able to use one eye, which means you have zero depth perception. Plus, loupes can over-magnify objects, not allowing for a full view of the ear canal. For accurate stereoscopic viewing of the ear canal, use a head-worn binocular microscope, like the  Vorotek O Scope.



MODELS, KITS AND ACCESSORIES

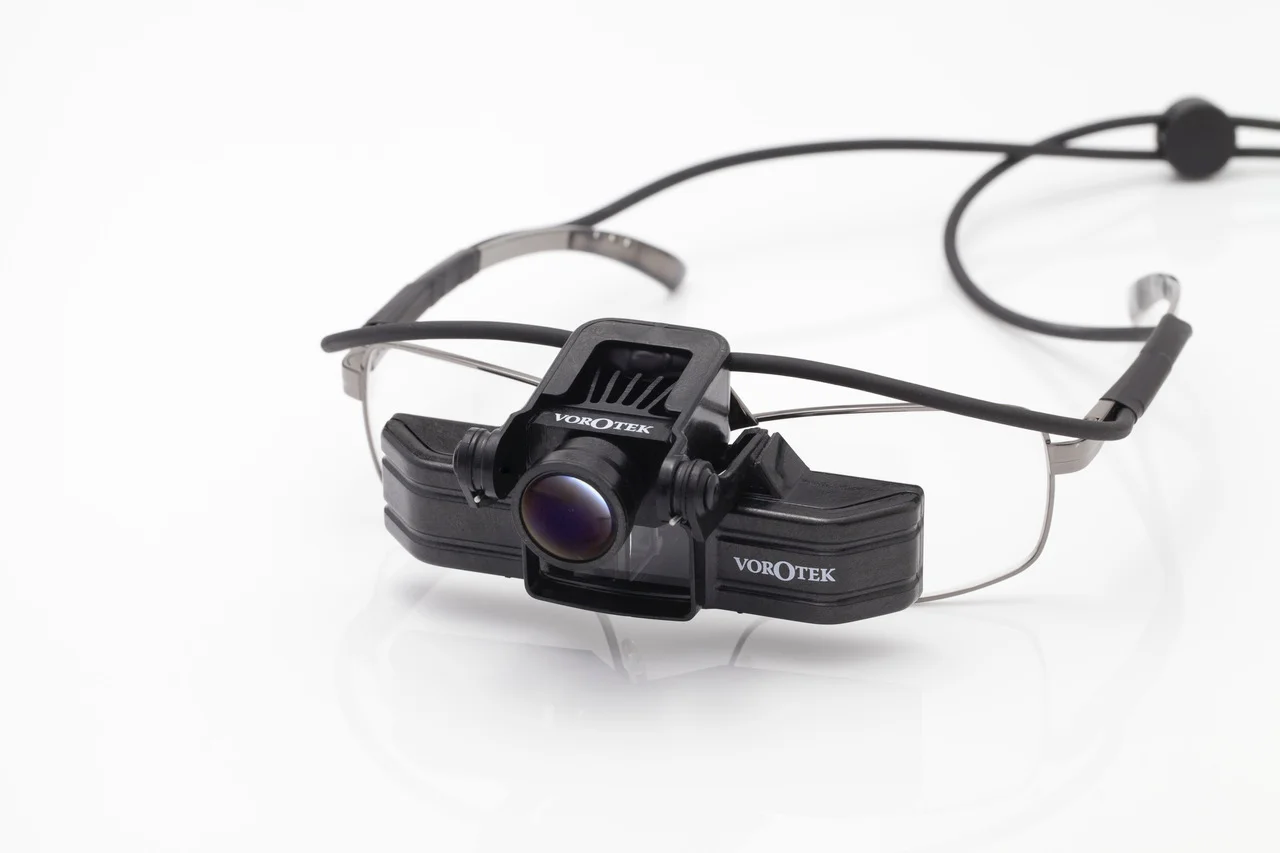

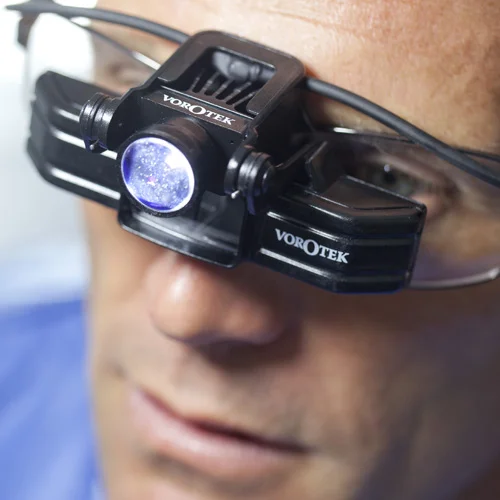

SpecFrame Model

Fully adjustable to match the user’s interpupillary distance. Can be fitted with the user’s prescription lenses. Ideal for individual use.

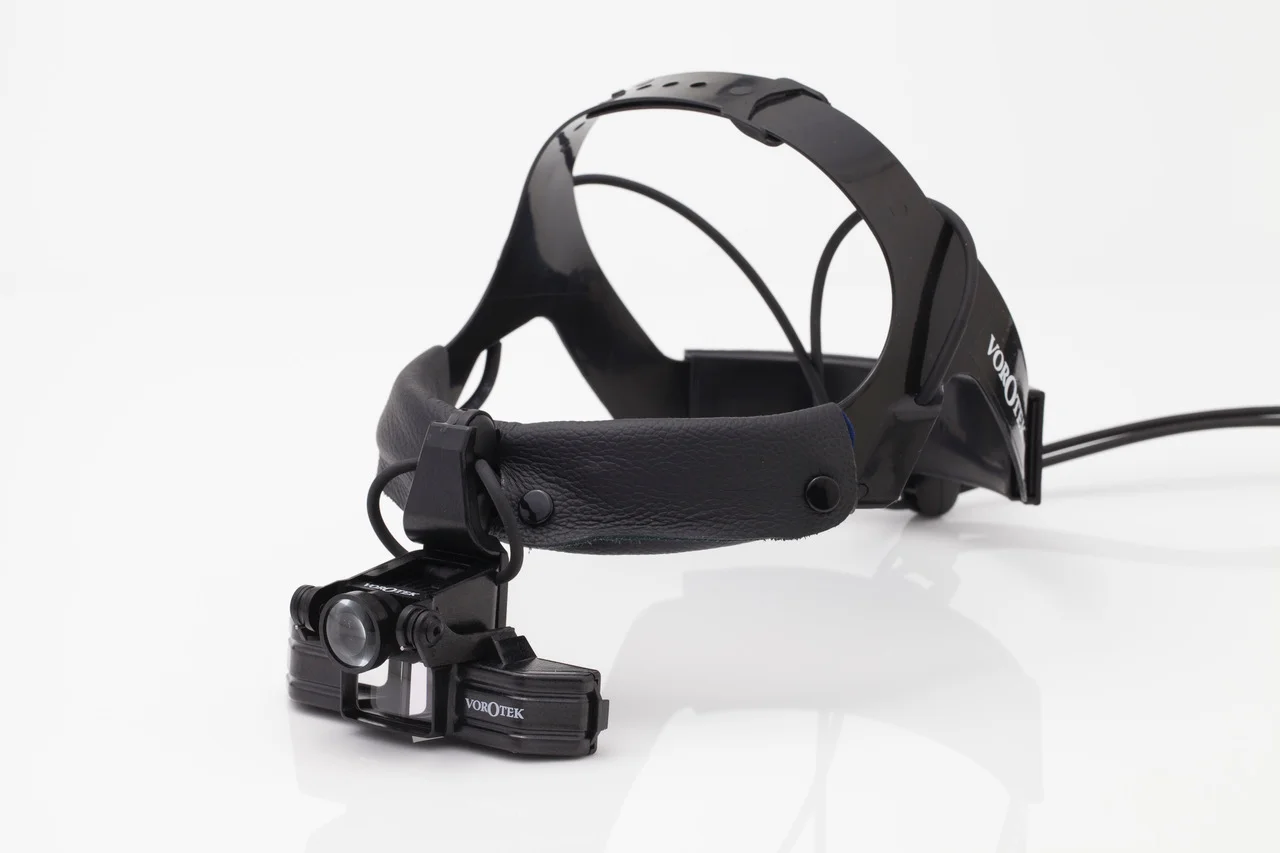

Headband Model

Fully adjustable to head size and user’s interpupillary distance. Can be worn over prescription lenses. Ideal for shared use.

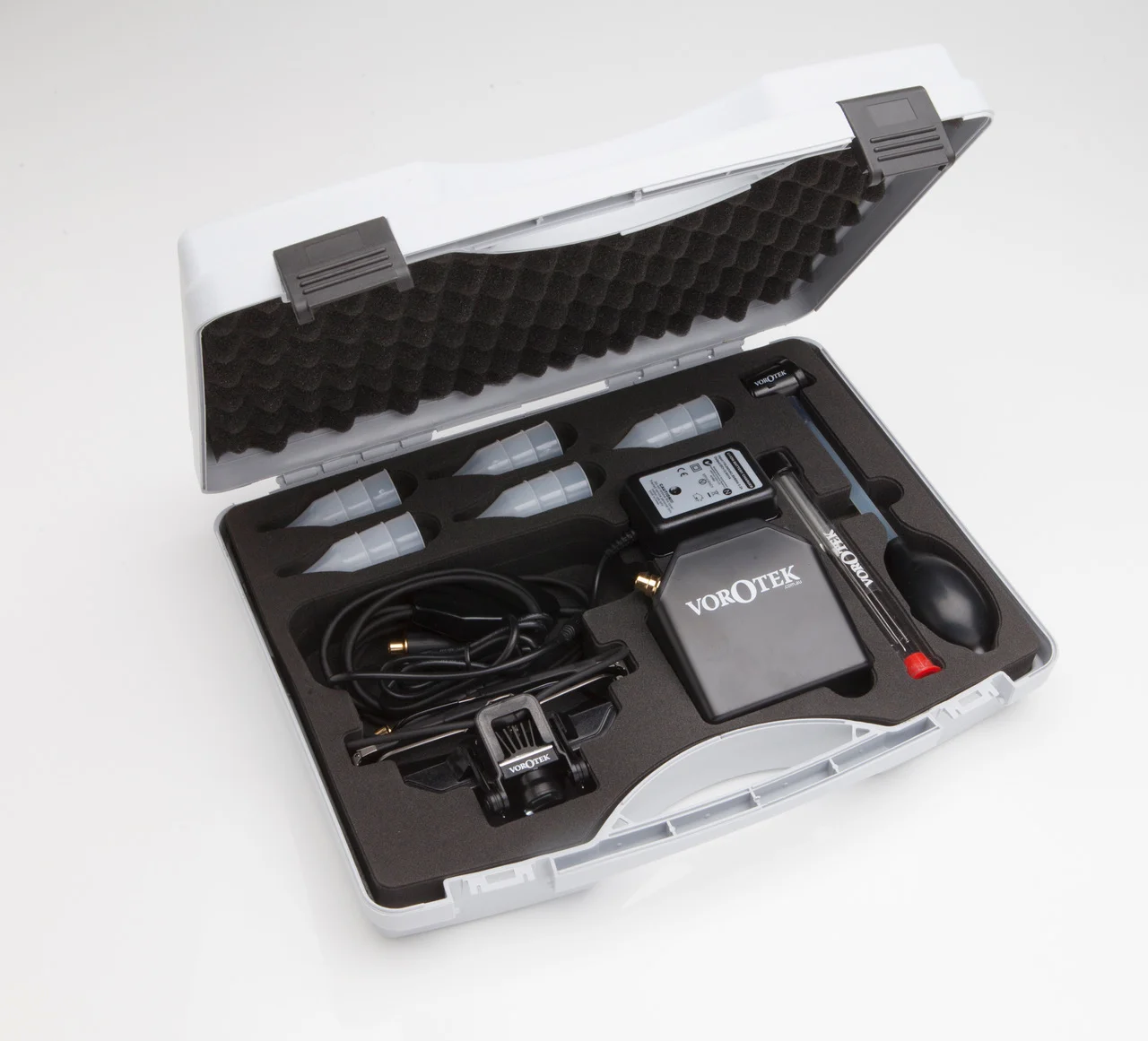

O Scope Kits:

AUDIOLOGY

Standard Kit:
O Scope, Battery, Charger, and Protective Carrying Case

Expanded Kit:
O Scope, Battery, Charger, 2.5mm & 3.5mm Ear Loops, Small 90 Degree Hook, 15 Specula (3 each of 5 sizes), Protective Case with compartments for all accessories



ENT

Standard Kit:
O Scope, Battery, Charger, and Protective Carrying Case

Expanded Kit:
O Scope, Battery, Charger, 2.5mm & 3.5mm Ear Loops, Cotton Applicator, Small and Large 90 Degree Hook, 15 Specula (3 each of 5 sizes), pneumatic otoscope. Protective Case with compartments for all accessories


Battery Pack

Lithium-ion battery pack provides 10 hours of use and fully charges in 4 hours. Charger/AC Power Supply can be used to provide continuous use.


Accessories

Translucent Specula
Enhanced illumination in the ear canal

Specula Dispenser
For use in busy clinics

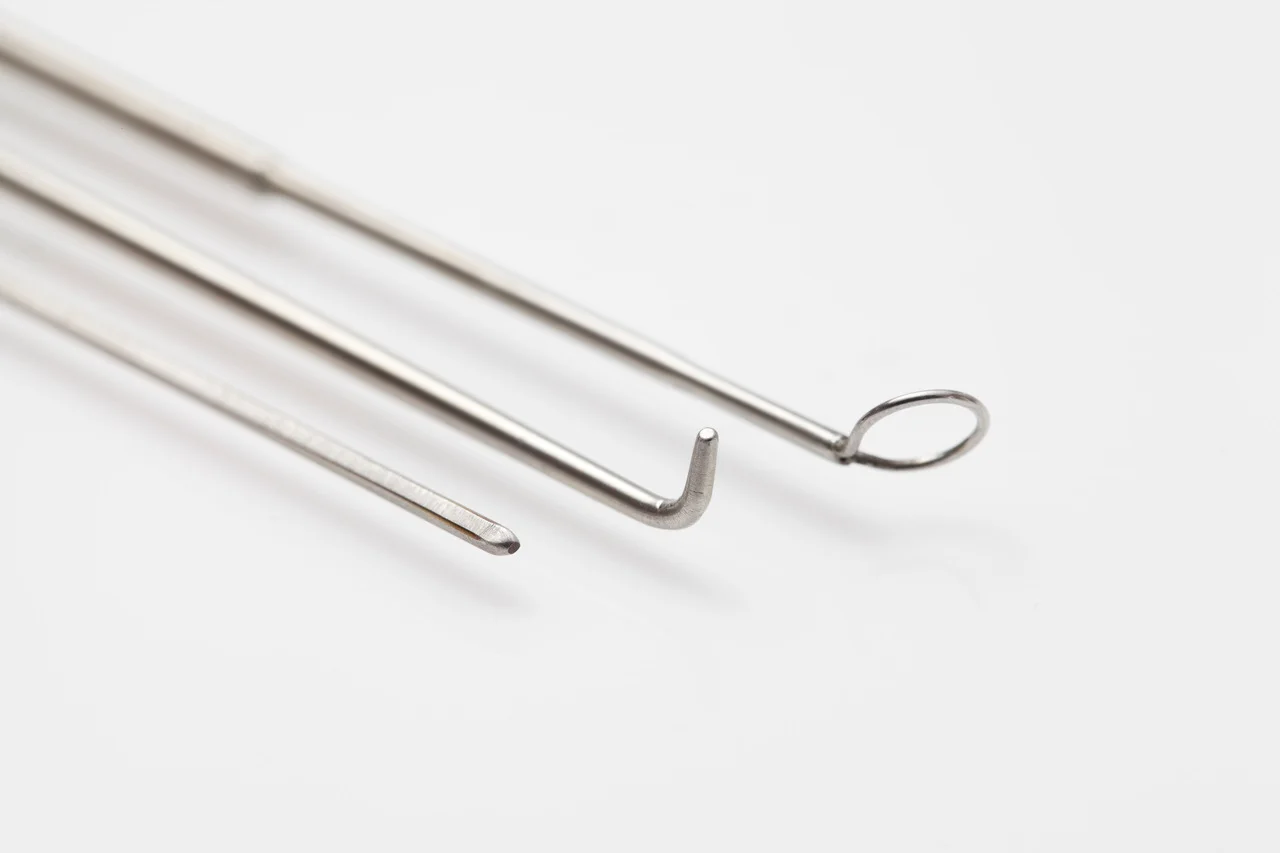

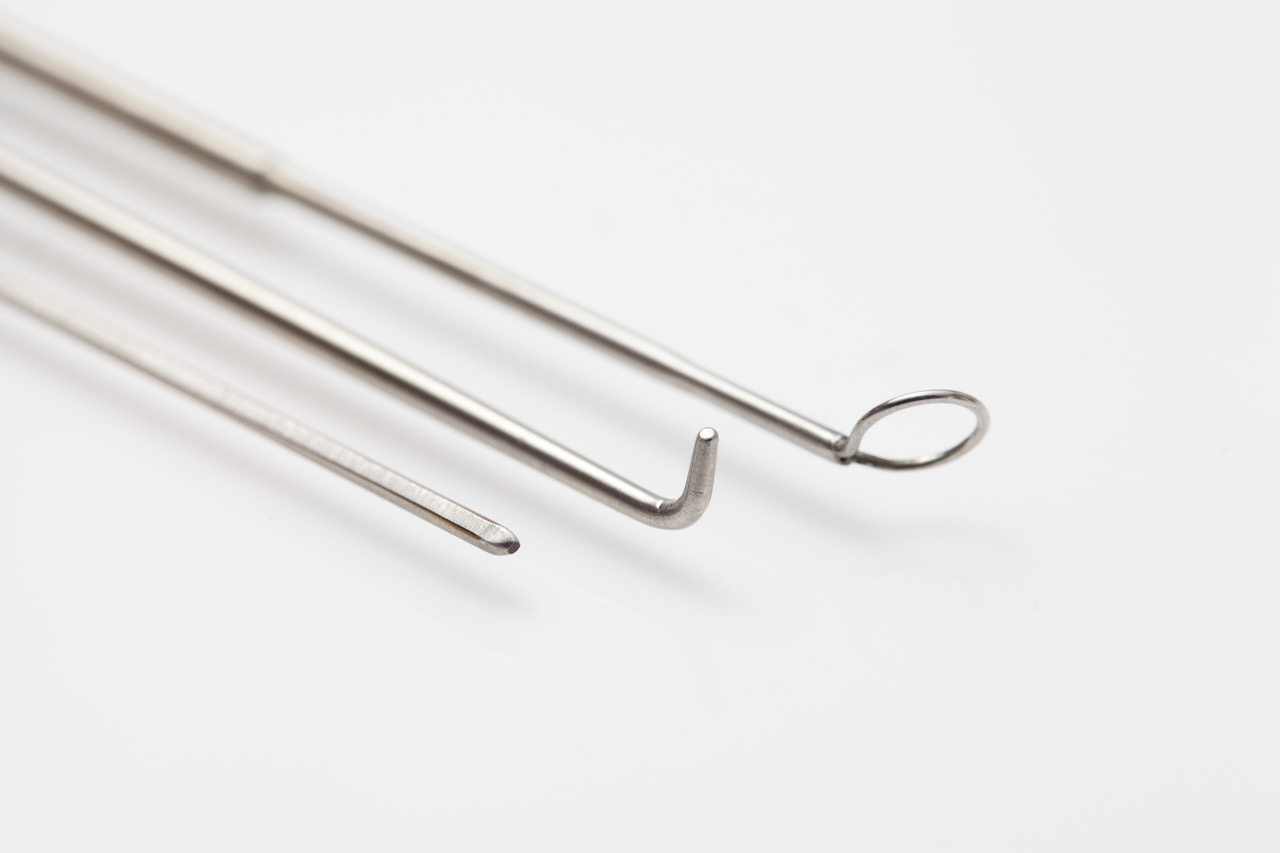

Ear Loops and Hooks
Shorter length for close working distance

Teaching Mirror
Allows easy visualization by others

Pneumatic Otoscope (puffer)
6-diopter lens for increased magnification



Cerumen Management Made Easy

Nobody loves cerumen management, especially patients. But it doesn't have to be that way. The biggest thing holding you back from the confidence to manage cerumen quickly and easily without having to use a wall-mounted telescope is true binocular visualization. Loupes can't provide that, but the O Scope makes it easy. O Scope saves valuable time, making cerumen management easy for you and your patient.
